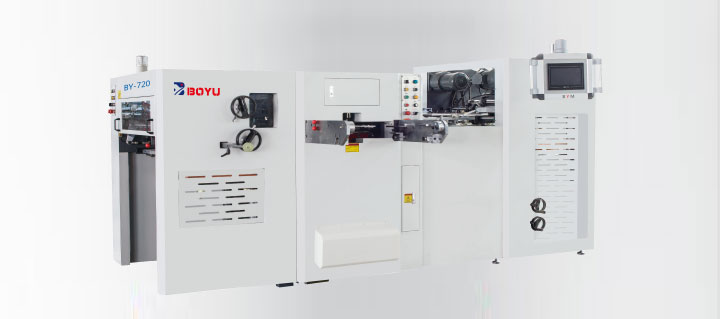

BY-720 Automatic ... Machine
Features Introduction
●Adopt programmable controller, and it is incorporated with fully
●Using unique cam intermittent construction designed by computer, which ensuring
diecutting precision and gripper bar's processing stability.
●The driving chain for gripper bar is imported from IWIS, Germany, ensuring precision
and life.
●Adopting pneumatic clutch, long life and low noise.
●The main motor is controlled by transducer, which achieves stepless speed regulation
and smooth operation.
●PLC, Transducer and all kinds of electric switch are imported from FUJI, YASKAWA, and
OMRON, JAPAN.
Specifications
| Max.paper size (mm) | 720×520mm |
| Min.paper size(mm) | 320×210mm |
| Max.cutting size (mm) | 710×510mm |
| Pressure(t) | 200t |
| Max.cutting speed (s/h) | 7500s/h |
| Sheet thickness (mm) | 100g-1000g/㎡ |
| Diecutting precision(mm) | 0.1-1.5 Flute≤4mm |
| Total power (kw) | 10kw |
| Net weight (t) | 7t |
| Overall dimension (mm) | 3500×2200×1850mm |
Parts Introduction
-
Paper-conveying Unit -
Main Driving Unit -
Electric Control -
Feeding Unit -
Pneumatic Clutch
